Mechanical Valve MSV98322 R JELPC

SKU: MSV98322-R Danh mục: MSV SERIES MECHANICAL VALVE Thẻ: van cơ

Mechanical Valve MSV98322 R JELPC

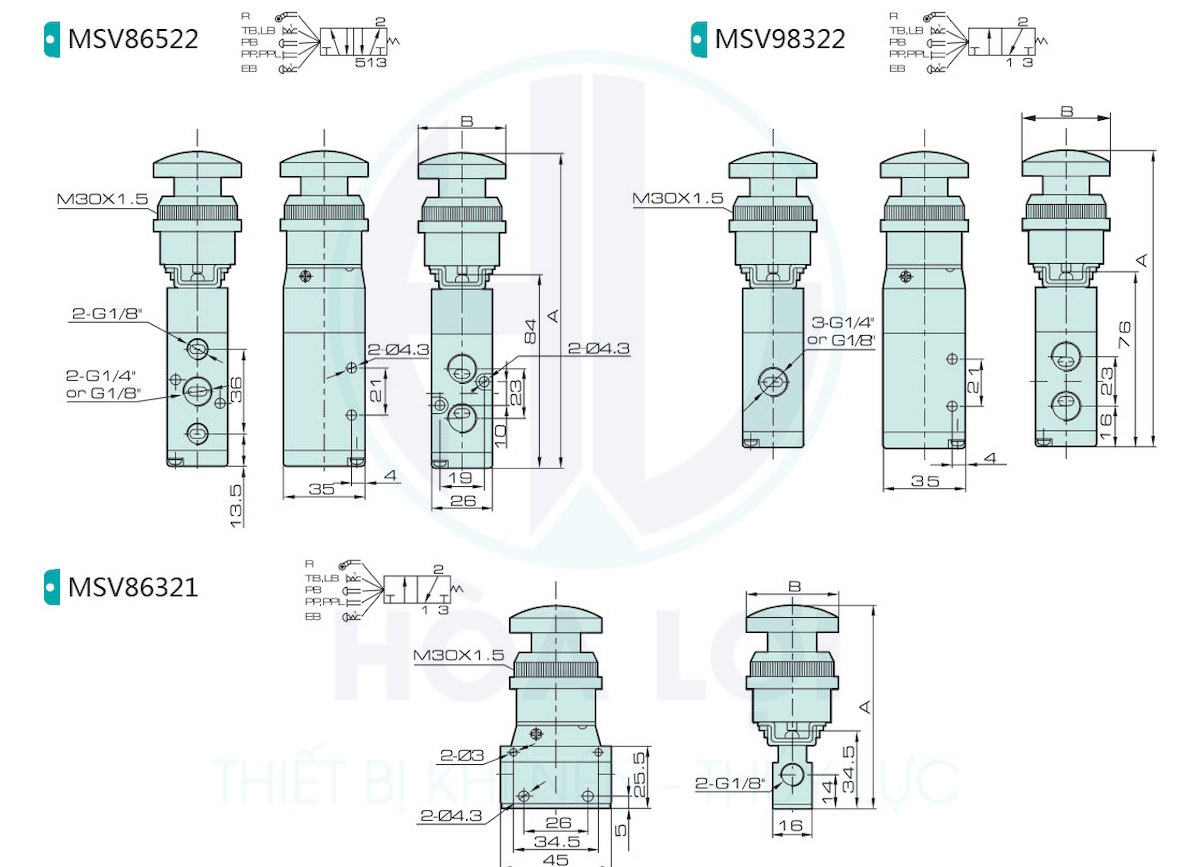

msv-series-jelpc-ordering-code msv series jelpc overall dimension

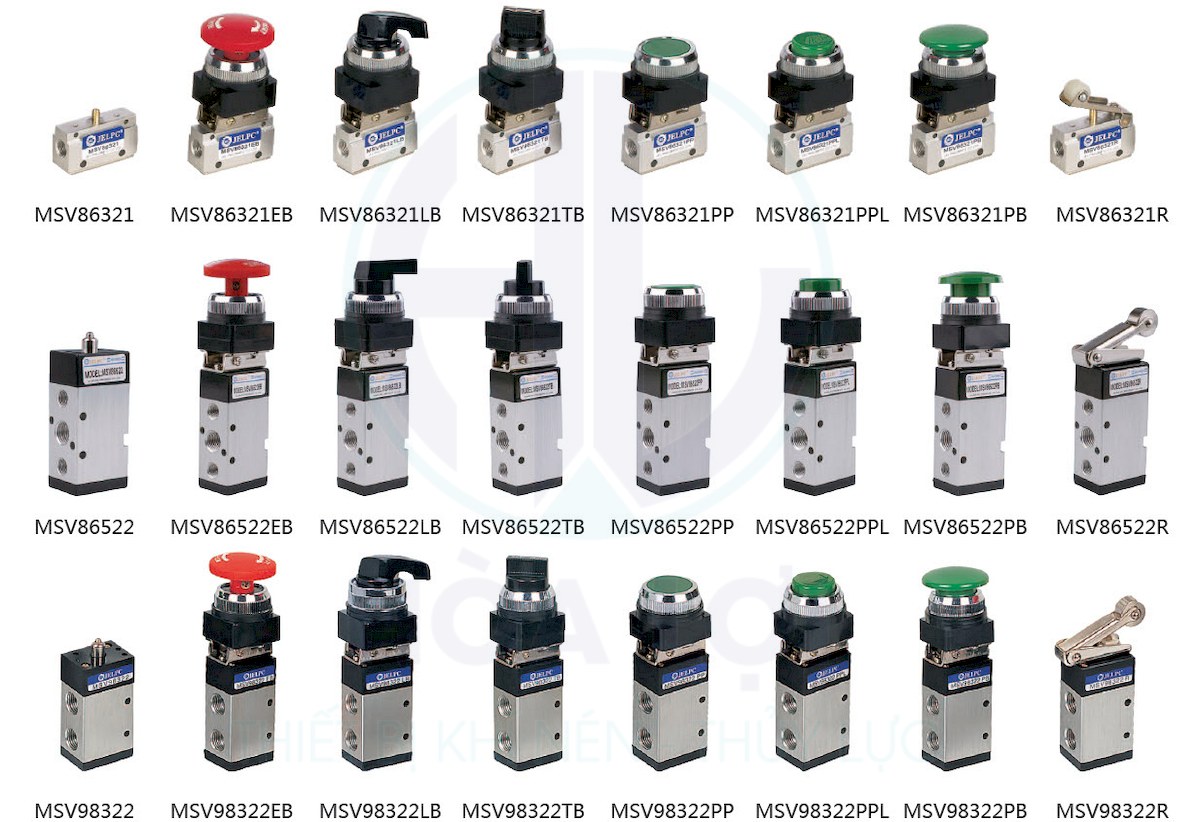

msv-series-code-jelpc

Model	MSV86321	MSV86522	MSV98322
Working Medium	40 Micron Filtered Air
Valve Type	3/2 Way	5/2 Way	3/2 Way
Working Pressure	0～0.8 MPa	0～0.8 MPa	0～0.8 MPa
Ambient Temperature	-20～70℃
Effective Cross Section Area	12mm²(CV=0.67)	16mm²(CV=0.89)	16mm²(CV=0.89)
Port Size	G1/8″	G1/4″	G1/4″
Code	MSV86321PP	MSV86522PP	MSV98322PP
	MSV86321PPL	MSV86522PPL	MSV98322PPL
	MSV86321LB	MSV86522LB	MSV98322LB
	MSV86321TB	MSV86522TB	MSV98322TB
	MSV86321EB	MSV86522EB	MSV98322EB
	MSV86321PB	MSV86522PB	MSV98322PB
	MSV86321R	MSV86522R	MSV98322R
